Infinian Technology Dealer, Distributor and Partner of Cisco Catalyst 9200 Series Switch in India – Bangalore and Chennai for Price/Cost Call: 9739091119

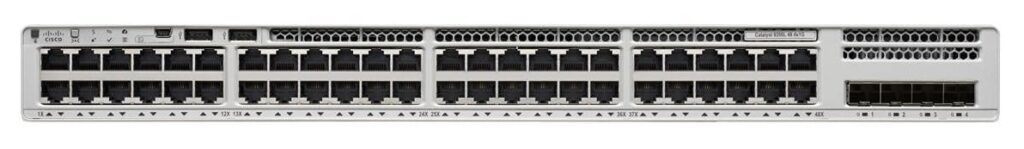

Cisco Catalyst 9200 Series is a powerful family of enterprise-grade switches designed to extend the benefits of intent-based networking to branch and access-level deployments. Here’s a detailed look:
Popular Models
| Model | Downlink Ports | Uplink | PoE | Stack Support |
|---|---|---|---|---|
| C9200-24P-A | 24x 1G PoE+ | Modular | Yes | StackWise-160 |
| C9200-48P-A | 48x 1G PoE+ | Modular | Yes | StackWise-160 |
| C9200L-24P-4G | 24x 1G PoE+ | 4x 1G Fixed | Yes | StackWise-160 |
| C9200L-48P-4X | 48x 1G PoE+ | 4x 10G Fixed | Yes | StackWise-160 |
Key Features & Technical Specifications
Here are the major technical capabilities and options:
| Feature | Details |
|---|---|
| Port Types & Density | Models with 24 or 48 ports typical; also multigigabit ports (1G/2.5G/5G/10G) in some variants. |
| PoE / PoE+ / UPOE | Supports PoE+ (802.3at) up to ~30 W per port. Some “mGig” ports and UPOE (up to 60W) in certain models (especially 9200CX) to support high-power devices (WiFi APs, etc.). |
| Uplinks / Network Modules | Many models have modular uplink options — e.g. 1G, 10G, 25G, 40G etc. Some variants have fixed uplinks. |
| Stacking | Uses Cisco StackWise. Up to 160 Gbps stacking bandwidth for many models. Fixed/guide: modular models get higher stacking options. Some compact variants (CX) may not support stacking. |
| Resiliency / Redundancy | Field-replaceable power supplies & fans in many models. Redundant power supply options. Fanless models in CX line. |
| Security | MACsec encryption (AES-128 for regular 9200, AES-256 for some CX) for higher security on links. Secure boot, image signing etc. |
| Routing & Layer 3 Features | Supports OSPF, EIGRP, ISIS, static routes, etc. Basic BGP in some CX models. IPV6 support. Routed access etc. |
| Management & Automation | CLI, RESTCONF/NETCONF, streaming telemetry. Plug-and-play provisioning. Cisco DNA Center support or cloud dashboards. Also options with Meraki dashboard in some “L / PXG” variants. |
| Power / Environmental | AC/DC options; some CX models support high voltage DC (HVDC) and wide voltage ranges. Fanless or low noise (CX). Ambient operating tolerances. |
Cisco Catalyst 9200 Series switches in India range from ₹1.7 lakh to ₹4 lakh depending on port count, uplink speed, PoE support, and model type.
Here’s a curated list of popular models available in India right now, along with their key specs and links to buy:
🛒 Top Cisco Catalyst 9200 Series Switches Available in India
- CISCO Catalyst 9200 C9200L-24P-4G Layer 3 Switch
- 24 Gigabit Ethernet ports, 4 Gigabit uplinks, PoE+, stackable
- Best for small to mid-sized enterprise access layers
- Price: ₹1,99,999
- Cisco Catalyst 9200 Layer 3 Switch, C9200L-48P-4X-E
- 48 GE ports, 4x10G uplinks, PoE+, redundant power, stackable
- Ideal for high-density deployments with advanced Layer 3 features
- Price: ₹4,03,100
- Cisco Catalyst C9200-24T Layer 3 Switch
- 24 GE ports, Layer 3 switching, rack-mountable
- Great for cost-effective access layer deployments
- Price: ₹2,63,375
- Cisco Catalyst C9300L-24T-4G-E 24-Port Gigabit Switch
- 24 GE ports, 4x1G uplinks, StackWise-160, MACsec
- Designed for secure, scalable enterprise networks
- Price: ₹1,69,999
- New Cisco Catalyst C9200L-48P-4G-E Network Switch
- 48 GE ports, PoE, VLAN, SNMP, stackable
- Suited for large branch offices or campus networks
- Price: ₹2,74,401 (discounted to ₹2,52,441)
🧠 Buying Tips
- PoE vs Non-PoE: If you’re powering IP phones or access points, go for PoE+ models.
- Uplink Speed: Choose 10G uplinks for future-proofing and high-throughput needs.
- Stacking Support: StackWise-160 allows up to 8 switches to be managed as one.
- Redundant Power: Critical for uptime in enterprise environments.
Is the Cisco 9200 end of life?
No, the Cisco 9200 series of switches is not end-of-life (EOL), although some specific licenses and software versions have reached their End-of-Sale (EOS) or EOL dates. Individual hardware models have their own EOL timelines, so it is important to check the specific model number.
What is the difference between 9200 and 9200L?
Flexibility: The 9200 series offers greater flexibility due to its modular design, while the 9200L series is better suited for deployment in scenarios that do not require changes to the uplink due to its fixed configuration.
What is port 9200 used for?
Port 9200 is primarily used by Elasticsearch for HTTP-based client-server communication, such as sending REST API requests to search, index, and retrieve data. Unlike port 9300, which is used for node-to-node communication within an Elasticsearch cluster, port 9200 is the default for external clients like applications and libraries to interact with the Elasticsearch engine.
What are the key features of the 9200 Series?
- 24 or 48 Gigabit Ethernet ports
- PoE+ support with up to 740W power budget
- StackWise-160 stacking with up to 160 Gbps bandwidth
- Modular uplinks: 1G or 10G SFP+
- Cisco IOS XE with programmability and automation
- Enhanced security: Secure Boot, MACsec, Trustworthy Solutions
Cisco 9200 Series Switch support automation and programmability?
They run Cisco IOS XE, support open APIs, and integrate with Cisco DNA Center for policy-based automation and analytics
Cisco 9200 Series switches stackable?
Yes, they support StackWise-160, allowing up to 8 switches to be stacked with 160 Gbps bandwidth for redundancy and scalability.
