Infinian Technology Dealer, Distributor, and Partner of Fortinet FortiGate NGFW Entry-level Series: FG-30E and FortiWiFi 30E Firewall Provider in India – Bangalore, Chennai for Price/Cost Call: 9739091119
FG-30E

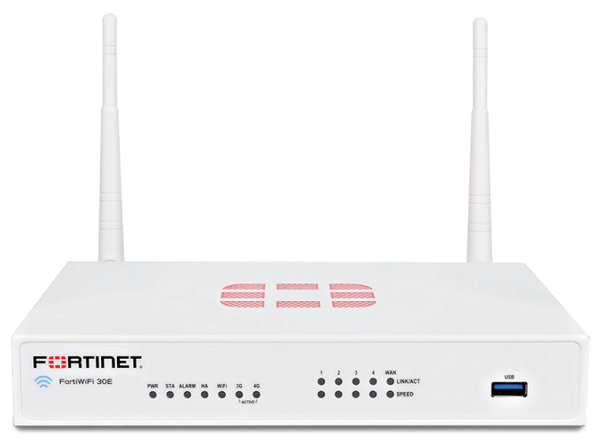

Fortinet FG-30E, 5 x GE RJ45 ports (Including 1 x WAN port, 4 x Switch ports), Max managed FortiAPs (Total / Tunnel) 2 / 2
Specifications:
| FortiGate 30E | FortiWiFi 30E | |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 Switch Ports | 4 | 4 |
| GE RJ45 WAN Port | 1 | 1 |
| USB Port | 1 | 1 |
| Console (RJ45) | 1 | 1 |
| Wireless Interface | – | 802.11 a/b/g/n |
| Internal Storage | 16 GB | |
| System Performance | ||
| Firewall Throughput | 950 Mbps | |
| Firewall Latency (64 byte UDP packets) | 130 μs | |
| Firewall Throughput (Packets Per Second) | 180 Kpps | |
| Concurrent Sessions (TCP) | 900,000 | |
| New Sessions/Second (TCP) | 15,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte packets) | 75 Mbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 20 | |
| Client-to-Gateway IPsec VPN Tunnels | 250 | |
| SSL-VPN Throughput | 35 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 80 | |
| IPS Throughput (HTTP / Enterprise Mix) | 600 / 240 Mbps | |
| SSL Inspection Throughput | 200 Mbps | |
| NGFW Throughput | 150 Mbps | |
| CAPWAP Throughput | 950 Mbps | |
| Virtual Domains (Default / Maximum) | 5 / 5 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 2 / 2 | |
| Maximum Number of FortiTokens | 20 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active/Active, Active/Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.61 x 8.27 x 5.24 | |
| Height x Width x Length (mm) | 41 x 210 x 133 | |
| Weight | 1.982 lbs (0.899 kg) 2.008 lbs (0.911 kg) | |
| Form Factor | Desktop | |
| Environment | ||
| Power Required | 100–240V AC, 60–50 Hz(External DC Power Adapter) | |
| Maximum Current | 100V / 0.6A, 240V / 0.4A | |
| Power Consumption (Average / Maximum) | 13 / 15 W | 19 / 16 W |
| Heat Dissipation | 52 BTU/h | 66 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 20–90% non-condensing | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | ||
| Regulatory Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB | |
| Certifications | ||
| ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | ||
Note: All performance values are “up to” and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1. NGFW performance is measured with Flow AV (Full Mode), IPS and Application Control enabled, based on Enterprise Traffic Mix. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES254-SHA. CAPWAP performance is based on 1444 byte UDP packets.
How to reset FortiGate 30E?
We have Three methods through which Factory reset can be performed on the FortiGate device
From Device Hardware (Hard Reset)
From Console Access (CLI)
From Console Access (Web GUI)
How to check model of FortiGate firewall?
Log into Fortinet Support Portal - https://support.fortinet.com.
Go to Products > Product List from the navigation menu to enter Product List page.
Enter the FGT/FWF product serial number or model number.
Click on the Serial Number to enter the Product Information page.
How many users can a FortiGate 30E handle?
Network Size Class 1-10 users/devices
1-GbE-RJ45 Ports 5x (including 1x WAN)
