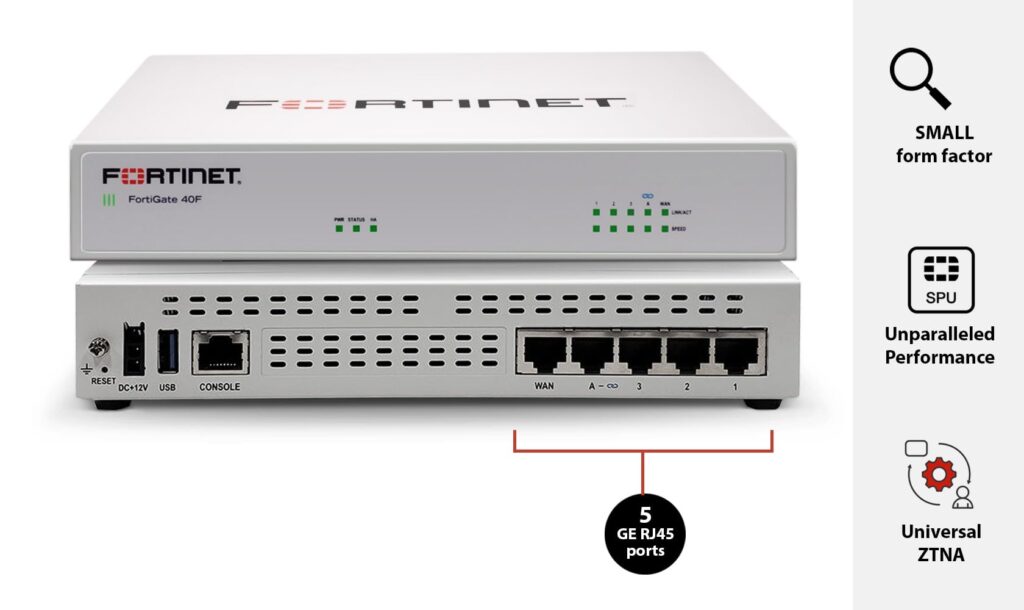

Infinian Technology Dealer, Distributor, and Partner of Fortinet FortiGate-40F (Next Generation Firewall Secure SD-WAN) Provider in India – Bangalore, Chennai for Price/Cost Call: 9739091119
Specifications:
| FortiGate 40F | FortiWifi 40F | |
|---|---|---|
| Interfaces and Modules | ||
| GE RJ45 WAN / DMZ Ports | 1 | |
| GE RJ45 Internal Ports | 3 | |
| GE RJ45 FortiLink Ports | 1 | |
| GE RJ45 PoE/+ Ports | – | |
| Wireless Interface | – | Single Radio (2.4GHz/5GHz) 802.11 /a/b/g/n/ac-W2 |
| USB Ports | 1 | |
| Console (RJ45) | 1 | |
| Onboard Storage | – | |
| Included Transceivers | – | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 1 Gbps | |
| NGFW Throughput | 800 Mbps | |
| Threat Protection Throughput | 600 Mbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5/5/5 Gbps | |
| Firewall Latency (64 byte UDP packets) | 2.97 μs | |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps | |
| Concurrent Sessions (TCP) | 700,000 | |
| New Sessions/Second (TCP) | 35,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 4.4 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 250 | |
| SSL-VPN Throughput | 490 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 310 Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 320 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 | |
| Application Control Throughput (HTTP 64K) | 990 Mbps | |
| CAPWAP Throughput (HTTP 64K) | 3.5 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 8 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 | |
| Maximum Number of FortiTokens | 500 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 | |
| Height x Width x Length (mm) | 38.5 x 216 x 160 | |
| Weight | 2.2 lbs (1 kg) | |
| Form Factor | Desktop | |
| Input rating | 12Vdc, 3A | |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz | |
| Power Consumption (Average / Maximum) | 7.74 W / 9.46 W | 14.6 W / 16.6 W |
| Maximum Current | 100V AC / 0.2A, 240V AC / 0.1A | |
| Heat Dissipation | 52.55 BTU/hr | 56.64 BTU/hr |
| Operating Environment and Certifications | ||
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | Fanless 0 dBA | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
| Radio Specifications | ||
| Multiple (MU) MIMO | – | 3 x 3 |
| Maximum Wi-Fi Speeds | – | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Maximum Tx Power | – | 20 dBm |
| Antenna Gain | – | 3.5 dBi @ 5GHz, 5 dBi @ 2.4 GHz |
